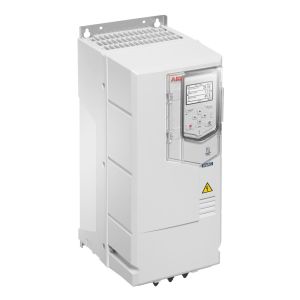

ACH580-01-293A-4+B056 - Variable Frequency Drive 160 Kw | ABB Inverter

The complete line of ABB Inverters, Variable Frequency drives and Variable Speed drives for your HVAC system is available at IACS.

The ABB drive ACH580-01-293A-4+B056 is the effective solution for your HVAC system.

The Power Rating of this Variable Frequency drive is 160 kW.

The IP Rating is IP55.

This is a 3 Phase drive.

If you need technical assistance, consult the ABB manualsheet or get in touch with our IACS technical support staff.

ACH580-01-293A-4+B056 - Variable Frequency Drive 160 Kw Inverter:

contains functionality for pumps and fans, including pump and fan control. contains the ability to fill pipes, clean them, and maintain a uniform height and depth. For the best possible sizing of the drive, motor, and process, an energy efficiency counter, an energy optimizer, and a load analyzer were incorporated into the design. There is also a Flash Drop tool supplied for quick parameter changes.

Powerful and native communications
HVAC communications protocols that are embedded save money by eliminating extra parts and wires. There are no extra costs or pointless options. Through embedded BACnetMS/TP and other HVAC protocols, you are able to manage applications, submit findings, read and write I/O settings, and carry out native diagnostics. Your teams don't need to be retrained for new terminology or features. Any controller's variation from our drive wouldn't even be noticeable.

Loop controllers standard
The drive offers a PID loop controller with two configuration options for precise motor, fan, and pump control in HVAC applications. In addition, four external PID loop controllers are provided, which can be applied to a number of different external devices, such as dampers for variable air volume or cooling and heating valves.

Native BACnet/IP option
There are no gateways or routers needed, much like BACnet MS/TP. This extra 2-port option decreases potential failure sites and speeds up setting.

160 kW Rated Inverter
FLC 293 Amps Continuous Supply
Power Supply 380 to 480 V, 3ph, 48 to 63 Hz
Dimensions 965mmh, 300mmw, 452mmd
ABB Frame size R8 (IP55)
Weight 74kg
With EMC filter built in as standard

Inputs and Outputs:
2 Analogue I/Ps: (0/2-10v or 0/4-20mA or a Potenziometer)
2 Analogue O/P:(0-10v or 0-20mA)
6 Digital I/Ps
3 Digital O/Ps: (3 relay)
