Precision Connectivity for HVAC Systems

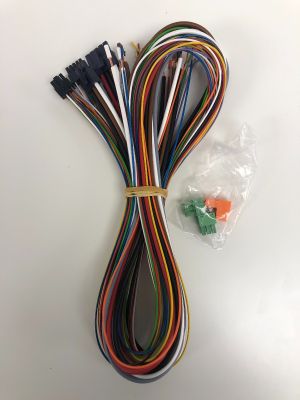

In the demanding environment of climate control, the physical layer of your control network is just as important as the software driving it. Our inventory covers a wide array of application-specific cables. For instance, the UCHCONP series provides dedicated connector and cable kits for the Uchiller controller panel-mounted versions, available in lengths ranging from 100cm to 300cm to accommodate various cabinet sizes.

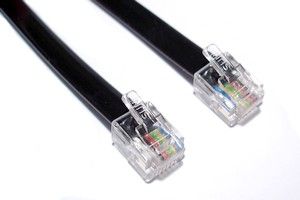

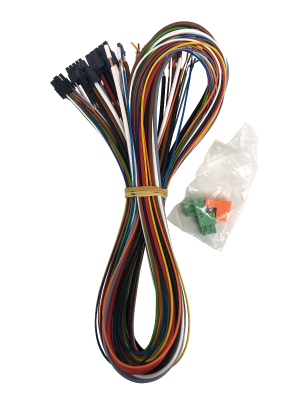

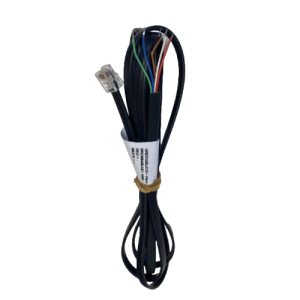

For those utilizing DIN-rail mounting, the UCHCOND010 offers the same high-quality Molex/Free connections in a format optimized for rail-based enclosures. Furthermore, we stock specialized display cables like the ACS00CB series, which are designed specifically for μChiller panel mounting displays, and the S90CONN001 cable for pGD displays and c.PCO MINI units.

Frequently Asked Questions

What is typically included in a Carel Cable Kit?

A standard kit generally includes the pre-terminated wiring harness with the necessary Molex or specialized connectors required to interface with a specific controller family. This eliminates the need for manual crimping and reduces the risk of wiring errors during installation.

Can I use standard telephone cables for pGD displays?

While some connectors may appear similar, we strongly recommend using the official S90CONN001 or equivalent Carel cables. These are manufactured to specific shielding and gauge standards required for the pGD and c.PCO MINI displays to ensure error-free data transmission over the 1.5m or 3m distances.

Which cable do I need for a panel-mounted UChiller?

For panel-mounted units, the UCHCONP series is the correct choice. You should select the length (100cm or 300cm) based on the distance between the controller and your terminal blocks or sensors to ensure there is enough slack for clean cable management without excessive coiling.

Why is it important to use genuine Carel Connectors?

HVAC systems often operate in environments with significant electrical noise and temperature fluctuations. Genuine connectors are tested for thermal stability and secure mechanical locking, ensuring that your hvac controls remain online and accurate even under industrial stress.
