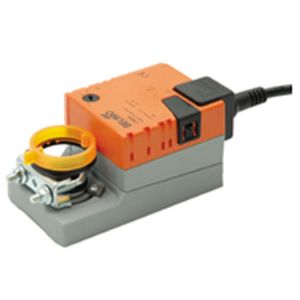

LM24A-SR - Belimo Damper actuator 5 Nm, 150 s, 95° AC / DC 24 V, modulating

£153.72 £128.10

In stock

Only 2 left

Chat with us to find out stock levels

Overview

Manuals & Datasheets

DATA-SHEET

Product type	Actuator
IP rating	IP54
Input Signal	0..10 Vdc
Manufacturer	Belimo
Power Supply	24Vac/Vdc
Torque	5 Nm
Running time	140 to 150 sec
Actuator type	Rotary
Control Type	Modulating

Description

Find all parts for your ventilation system at iacs, the Free Delivery and 1-2 Delivery is available for all the Belimo Actuators in stock

The Belimo LM24A-SR is a type of Actuator used to control dampers in HVAC systems and applications.

This kind of Actuator rotates the damper in order to control it.

The force applied by the Torque of the LM24A-SR is 5 Nm.

This Rotary Actuator needs to be supported by a power supply of 24Vac/Vdc.

Find at IACS the ideal Belimo Actuator compatible with your system at the best price.

If you are unsure about size or installation, refer to the Belimo custom datasheet above or message iacs to receive special instructions and a custom quote.

Features

Mode of operation The actuator is controlled by means of a standard control signal DC 0 ... 10 V. It opens to the position dictated by this signal. The measuring voltage U allows the damper position (0 ... 100%) to be electrically indicated and serves as a follow-up control signal for other actuators.

Simple direct mounting Simple direct mounting on the damper spindle with a universal spindle clamp, supplied with an anti-rotation strap to prevent the actuator from rotating.

Manual override Manual operation is possible with the self-resetting pushbutton (the gearing latch remains disengaged as long as the pushbutton is pressed).

Adjustable angle of rotation Adjustable angle of rotation with mechanical end stops.
High functional reliability The actuator is overload-proof, requires no limit switches and automatically stops when the end stop is reached.

Introducing the Belimo Damper Actuator LM24A-SR - the perfect solution for precise and reliable control of your HVAC systems. Designed for use in air dampers, the LM24A-SR is an electrically powered actuator that delivers exceptional performance and durability.

With a nominal voltage of AC 24 V, 50/60 Hz, and a DC 24 V range, the LM24A-SR is versatile enough to meet a range of application requirements. It has a power consumption of 1 W @ nominal torque during operation and 0.4 W at rest, making it an energy-efficient option for your system. The cable provided is 1 m long, 4 x 0.75 mm2, ensuring flexibility and ease of installation.

The LM24A-SR boasts a torque of 5 Nm @ nominal voltage, making it suitable for a range of damper sizes. It operates using a control signal of DC 0 ... 10 V, with a typical input impedance of 100 kΩ and a working range of DC 2 ... 10 V. The actuator features position feedback with a measuring voltage of DC 2 ... 10 V, with a maximum 1 mA. Its position accuracy is ±5%, ensuring precise control of your system. Additionally, the LM24A-SR's direction of rotation is reversible, and it has a manual override with a pushbutton, which can be disengaged and self-resetting.

The LM24A-SR has an angle of rotation of up to 95°, limited on both sides by adjustable, mechanical end stops. It has a running time of 150 s and a sound power level of a maximum of 35 dB (A). It features a mechanical, pluggable position indication, making it easy to monitor the actuator's position.

This actuator is also designed to withstand harsh conditions, with a degree of protection of IP54 in any mounting position. It operates within an ambient temperature range of –30 ... +50°C and a non-operating temperature of –40 ... +80°C. It also has an ambient humidity range of 95% r.H., non-condensating (EN 60730-1), and requires no maintenance, ensuring hassle-free operation.

At approximately 500 g, the LM24A-SR is compact and lightweight, making it easy to install and integrate into your system. Whether you're looking to upgrade your existing HVAC system or building a new one from scratch, the Belimo Damper Actuator LM24A-SR offers reliable, precise, and energy-efficient control.
