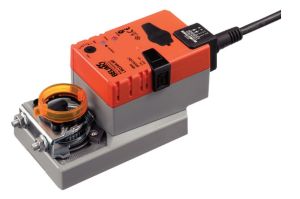

LMQ24A - Belimo Damper actuator 4 Nm, 2.5 s, 95° AC / DC 24 V

At IACS we provide Free Delivery and Next 1-2 day Delivery for all the Belimo Actuators in stock.

The Belimo LMQ24A is an Actuator used in HVAC systems and applications to manage dampers.

This type of Actuator applies a Rotary motion to regulate the damper.

The Torque force applied by the LMQ24A is 4 Nm.

The power supply requested for this Rotary Actuator is 24Vac/Vdc.

Find the appropriate Belimo Actuator for your system at the greatest price at iacs.

If you have questions about size or installation, consult the Belimo custom datasheet above or send an email to iacs to get personalised guidance.

Features


• Simple direct mounting Simple direct mounting on the damper spindle with a universal spindle clamp, supplied with ananti-rotation strap to prevent the actuator from rotating.


• Manual override Manual override with push-button possible (the gear is disengaged for as long as the button ispressed or remains locked).


• Adjustable angle of rotation Adjustable angle of rotation with mechanical end stops.A minimum permissible angle of rotation of 30° must be allowed for.


• High functional reliability The actuator is overload-proof, requires no limit switches and automatically stops when the endstop is reached.


• Home position The first time the supply voltage is switched on, i.e. during initial startup, the actuator carries outan adaptation. After pressing the «gear disengagement» pushbutton, the actuator moves to thehome position at the end stop.
  The actuator then moves into the position defined by the control signal.


• Adaption and synchronisation During adaptation, the upper and lower spindle end stop is recorded and deposited in theactuator. Detection of the mechanical end stops enables a gentle approach to the end positionsand thus protects the actuator mechanism.During synchronisation, the actuator moves to the home position for angle referencing. Thisensures correct position regulation.

•     Electrical data Nominal voltage AC 24 V, 50/60 Hz / DC 24 V
•     Nominal voltage range AC 19.2 ... 28.8 V / DC 21.6 ... 28.8 V
•     Power consumption In operation 13 W @ nominal torque
•     At rest 2 W
•     For wire sizing 23 VA (I max. 20 A @ 5 ms)
•     Connection Cable 1 m, 3 x 0.75 mm2
•     Functional data Torque (nominal torque) Min. 4 Nm @ nominal voltage
•     Direction of rotation Reversible with switch 0 resp. 1
•     Manual override Gearing latch disengaged with pushbutton, can be locked
•     Angle of rotation Max. 95°, can be limited at both ends with adjustable mechanical end stops
•     Angle of rotation limiting min. 30°
•     Running time 2.5 s / 90°
•     Automatic adjustment of operating range to match the mechanical angle of rotation Manual triggering of the adaption by pressing the «Adaption» button
•     Sound power level 52 dB (A)
•     Position indication Mechanical, pluggable
•     Negative torque <=50% from nominal torque (Caution: can only be used with restrictions. Please contact your Belimo representative.)
•     Safety Protection class III Safety extra-low voltage UL Class 2 Supply
•     Degree of protection IP54 in any mounting position NEMA 2, UL Enclosure Type 2
•     EMC CE according to 2004/108/EC
•     Certification Certified to IEC/EN 60730-1 and IEC/EN 60730-2-14 cULus according to UL 60730-1A and UL 60730-2-14 and CAN/CSA E60730-1:02
•     Mode of operation Type 1
•     Rated impulse voltage 0.8 kV
•     Control pollution degree 3
•     Ambient temperature –30 ... +40°C (no restrictions) +40 ... +50°C (Caution: can only be used with restrictions. Please contact your Belimo representative.)
•     Non-operating temperature –40 ... +80°C
•     Ambient humidity 95% r.H., non-condensating
•     Maintenance Maintenance-free
•     Dimensions / Weight Dimensions See «Dimensions» on page 3
•     Weight Approx. 850 g
