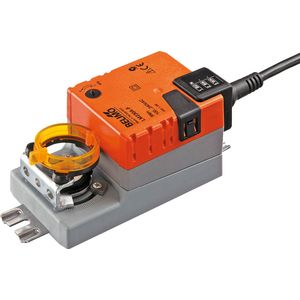

LMC230A - Belimo Damper rotary actuator 5 Nm, 35 s, constant, 95° AC 230 V

Find all the components for your ventilation system at IACS. All Belimo Actuators on hand are eligible for Free Delivery and 1-2 Delivery.

The Belimo LMC230A is a kind of Actuator used to manage dampers in HVAC applications and systems.

To control the damper, this kind of Actuator turns it by Rotary motion.

The Torque used by the LMC230A is 5 Nm.

This Belimo Actuator requests a power supply of 230Vac.

If you have questions concerning size or installation, refer to the Belimo custom datasheet above or email iacs for individualised support.

Supplied By Belimo, the LMC230A is a Damper actuator suitable for HVAC systems.

This type of actuator applies a rotary motion to handle the damper.

The force of torque for this actuator is 5.

The actuator LMC230A regulates the damper by a Open/Close control.

Features

• Simple direct mounting Simple direct mounting on the damper spindle with a universal spindle clamp, supplied withan anti-rotation strap to prevent the actuator from rotating.


• Manual override Manual operation is possible with the self-resetting pushbutton (the gearing latch remainsdisengaged as long as the pushbutton is pressed).


• Adjustable angle of rotation Adjustable angle of rotation with mechanical end stops.


• High functional reliability The actuator is overload-proof, requires no limit switches and automatically stops when theend stop is reached.


•     Electrical data Nominal voltage AC 100 ... 240 V, 50/60 Hz
•     Nominal voltage range AC 85 ... 265 V
•     Power consumption In operation 2 W @ nominal force
•     At rest 0.4 W
•     For wire sizing 4 VA
•     Connection Cable 1 m, 3 x 0.75 mm2
•     Functional data Torque (nominal torque) Min. 5 Nm @ nominal voltage
•     Direction of rotation Reversible with switch 0 anticlockwise or 1  clockwise
•     Manual override Gearing latch disengaged with pushbutton, self-resetting
•     Angle of rotation Max. 95° , limited on both sides by means of adjustable, mechanical end stops
•     Running time 35 s
•     Sound power level Max. 45 dB (A)
•     Position indication Mechanical, pluggable
•     Safety Protection class III Safety extra-low voltage
•     Degree of protection IP54 in any mounting position
•     EMC CE according to 89/336/EEC
•     Mode of operation Type 1 (to EN 60730-1)
•     Ambient temperature range –30 ... +50°C
•     Non-operating temperature –40 ... +80°C
•     Ambient humidity range 95% r.H., non-condensating (EN 60730-1)
•     Maintenance Maintenance-free
•     Dimensions / Weight Dimensions See «Dimensions» on page 2
•     Weight Approx. 500 g
