AX-FC-8 - Axio Fan speed controller Cut Phase 0-10V 8A/230VAC single phase

£69.59 £57.99

On request

Next Supplier Stock Update: 18/04/2026

Chat with us to find out stock levels

Overview

Manuals & Datasheets

DATA-SHEET

Product type	Fan Speed Regulators
Manufacturer	Axio
Power Supply	230Vac, 1Ph, 50Hz

Description

Product Overview:

The compact AX-FC fan speed controller provides stepless speed regulation of single phase AC motors. The unit offers several voltage and current control input options combined with a fan off function. The unit is designed for panel mounting.

Technical specifications:

Supply Voltage 210 to 250Vac 50Hz

Control Signal Voltage: 0-10V or 2-10V.

Current: 0-20mA or 4-20mA 0-10V

Input Current 1mA maximum Maximum Output

Current 8 Amps

Start Up Soft start

Minimum Speed Adjustment 0% to 40%

Maximum Speed Adjustment 60% to 100%

Fuse Size 8 Amps

Terminals Rising clamp for 0.5-2.5mm² cable

Dimensions 83(W) x 37(H) x 74(D)mm

Weight 220gms

Ambient Temperature 0˚C to 40˚C (See Dimensions and fixings)

Country of Origin United Kingdom

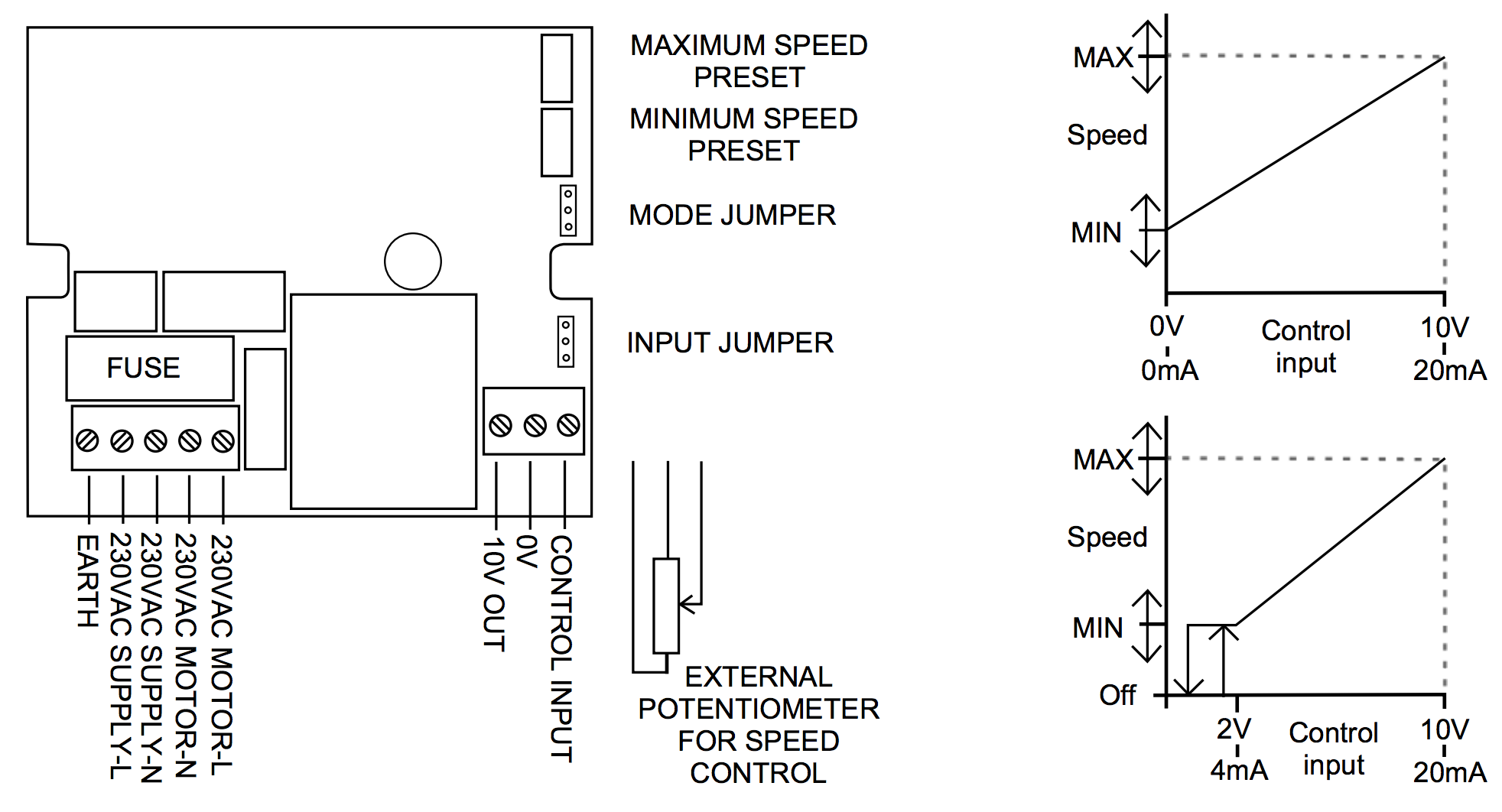

Description and connections

The AX-FC fan speed controller provides stepless speed regulation of single phase AC motors. The Input jumper sets the unit up for voltage or current control input and the Mode jumper selects between 0-10V/0-20mA and 2- 10V/4-20mA control signals. The minimum speed preset sets the fans speed at the bottom end of the input range (Idle speed) and the maximum speed preset sets the fan speed at the top of the input range. With the Mode jumper set for 2-10V/4-20mA the fan will automatically switch off when the input falls below 0.5 volts / 1mA (Approximately) and switches on when the input rises above 1.5V / 3mA (Approximately). The unit has a soft start to prevent any sudden speed changes reducing stress on the fan. The AX-FC has a fixed 10 volt output for connection to an external potentiometer providing a stand alone fan speed control solution.
