SKU
FCSM082300

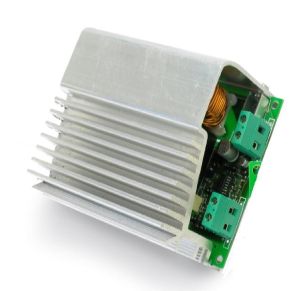

FCSM082300 - Carel Fan Speed Controller-Cut Phase 0-10V 8A/230VAC
£161.82
£134.85
In stock
Only 1 left
Manuals & Datasheets
| DATA-SHEET | BROCHURE |
 |
|
| Product type | Fan Speed Regulators |
| Manufacturer | Carel |
| Power Supply | 230Vac, 1Ph, 50Hz |
Technical specifications:
Power supply: 230V Single-phase Rated current: 8A Frequency: 50/60Hz Control signal: 0 to 10Vdc Index of protection: None (open board) Power supply for possible manual control (+V terminal): 20 Vdc 40 mADimensions: 82W x 107H x 58D
Input/output characteristic: Curve
The single-phase FCS units are electronic voltage regulators that use the phase-control principle to regulate the output voltage supplied to the load, according to a control signal input.
The controllers are used to control asynchronous motors, such as fans, pumps, mixers, stirrers, etc. By applying a 0 to 10 Vdc control signal, the effective voltage provided to the load varies from 0 to 230 Vac.
The board also features, at the terminal marked +V, a non-stabilised power source, 20 Vdc 40 mA, which can be used to create a manual control signal using a 10 kOhm potentiometer. The controllers are protected against short-circuits by a fuse on the outside of the board, for easy access and, where necessary, replacement. Check that the motors used are suitable for phase control applications.
Power supply: 230V Single-phase Rated current: 8A Frequency: 50/60Hz Control signal: 0 to 10Vdc Index of protection: None (open board) Power supply for possible manual control (+V terminal): 20 Vdc 40 mADimensions: 82W x 107H x 58D
Input/output characteristic: Curve
The single-phase FCS units are electronic voltage regulators that use the phase-control principle to regulate the output voltage supplied to the load, according to a control signal input.
The controllers are used to control asynchronous motors, such as fans, pumps, mixers, stirrers, etc. By applying a 0 to 10 Vdc control signal, the effective voltage provided to the load varies from 0 to 230 Vac.
The board also features, at the terminal marked +V, a non-stabilised power source, 20 Vdc 40 mA, which can be used to create a manual control signal using a 10 kOhm potentiometer. The controllers are protected against short-circuits by a fuse on the outside of the board, for easy access and, where necessary, replacement. Check that the motors used are suitable for phase control applications.
|
TECHNICAL FEATURES |
|
|
|
|
|
Power Supply |
230 Vac (-15% to +10%), 50/60 Hz |
|
Control signal |
0 to 10 Vdc |
|
Input signal impedance |
180 kOhm |
|
Operating conditions |
-10T50 °C, <90% rH non-condensing |
|
Storage conditions |
-20T70 °C, <90% rH non-condensing |
|
Index of protection |
NONE |
