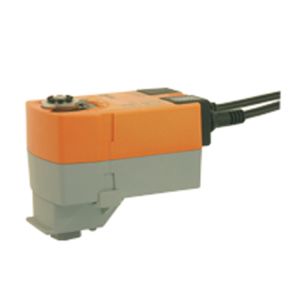

TRF230 - Belimo Spring-return actuator NC for water applications | ideal for ball valves

Find all the components for your ventilation system at IACS. All Belimo Actuators on hand are eligible for Free Delivery and 1-2 Delivery.

The Belimo TRF230 is a kind of Actuator used in HVAC applications and air ventilation systems.

The Torque used by the TRF230 is 2.5 Nm.

The power supply requested for this Rotary Actuator is 230Vac.

IACS has the best prices on the right Belimo Actuators for your system.

Consult the Belimo custom datasheet above or contact iacs via email for personalised assistance if you have queries about size or installation.

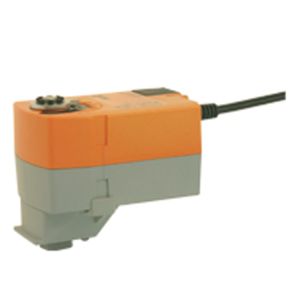

The Belimo TRF230 is a Spring-return actuator NC for water applications

•    2 Nm, 40...75 s (0...2 Nm), 95°
•    AC 230 V, Open/Close
•    Running time spring 75s
•    Control Open/Close with single-wire contact
•    Emergency control closed

Features


Mode of operation At the same time as tensioning the return spring, the actuator pushes the ball valve to the operating position. If the supply voltage is disconnected, the ball valve is returned to the safety position by spring force.

Simple direct mounting Only one screw is required for direct attachment on the ball valve. In 90°) steps, the mounting position in relation to the ball valve can be selected.

High functional reliability The actuator is overload-proof, does not require limit switches, and stops when the end stop is reached automatically.

Combination valve/actuators For information on acceptable valves, their permissible media temperatures, and closing pressures, consult the valve documentation.

•    Electrical Nominal voltage AC 100 ... 240 V, 50/60 Hz
•    Nominal voltage range AC 85 ... 265 V
•    Power consumption In operation 2.5 W @ nominal torque At rest 1.5 W For wire sizing  5 VA
•    Connection Cable 1 m, 2 x 0.75 mm2
•    Parallel connection Yes (note performance data for supply!)
•    Functional data Torque Motor Min. 2 Nm @ nominal voltage Spring-return Min. 2 Nm
•    Direction of rotation see «Overview of types»
•    Manual override No
•    Angle of rotation Max. 95°<)
•    Running time Motor <75 s (0 ... 2 Nm) Spring-return 75 s
•    Sound power level Motor Max. 50 dB (A) Spring-return ~43 dB (A)
•    Service life Min. 60’000 emergency settings
•    Position indication Mechanical
•    Safety Protection class II Totally insulated
•    Degree of protection IP42 in any mounting position
•    EMC CE according to 2004/108/EC Low-voltage directive CE according to 2006/95/EC
•    Mode of operation Type 1 ( EN 60730-1)
•    Rated impulse voltage 4 kV (to EN 60730-1)
•    Control pollution degree 3  (to EN 60730-1)
•    Ambient temperature –30 ... +50°C
•    Media temperature +5 ... +100°C (in ball valve)
•    Non-operating temperature –40 ... +80°C
•    Ambient humidity range 95% r.H., non-condensating (EN 60730-1)
•    Maintenance Maintenance-free
•    Dimensions / Weight Dimensions See «Dimensions» on page 2
•    Weight Approx. 600 g (without ball valve)
