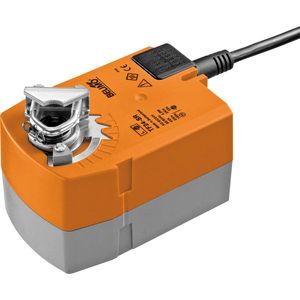

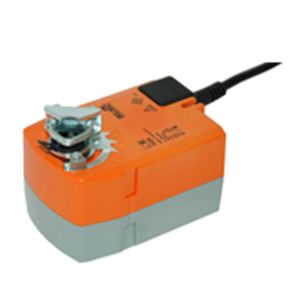

TF230 - Belimo Spring-return Damper Actuator 2 Nm, < 75 s, 95° AC 230 V, Open/Close IP 42

At IACS we provide Free Delivery and Next 1-2 day Delivery for all the Belimo Actuators in stock.

The Belimo TF230 is an Actuator used in HVAC applications and air ventilation systems.

The Torque force applied by the TF230 is 2 Nm.

The power supply requested for this Rotary Actuator is 230Vac.

IACS has the best prices on the right Belimo Actuators for your system.

Consult the Belimo custom datasheet above or contact iacs via email for personalised assistance if you have queries about size or installation.

TF230 - Spring-return actuator 2 Nm, < 75 s, 95°

•    AC 230 V, Open/Close IP 42,
•    Running time motor 25 s
•    Control Open/Close with single-wire contact
•    Connection PVC cable 1m
•    Spindle driver universal spindle clamp
•    Direction of rotation reversible (right/left)
•    Angle of rotation limit. mech. adjustable

Features


• Mode of operation  The actuator moves the damper to its normal working position while tensioning the return spring at the same time. If the power supply is interrupted, the energy stored in the spring moves the damper back to its safe position.

• Simple direct mounting Simple direct mounting on the damper spindle with a universal spindle clamp. An antirotation device is supplied to prevent unwanted rotation of the whole unit.


• High functional reliability The actuator is overload-proof, requires no limit switches and automatically stops when the end stop is reached.

•    Electrical data Nominal voltage AC 100 ... 240 V, 50/60 Hz
•    Nominal voltage range AC 85 ... 265 V
•    Power consumption In operation 2.5 W @ nominal torque At rest 1.5 W For wire sizing VA
•    Connection Motor Cable 1 m, 2 x 0.75 mm2
•    Functional data Torque Motor Min. 2 Nm @ nominal voltage Spring return Min. 2 Nm
•    Direction of rotation Selected by mounting L / R
•    Angle of rotation Max. 95°<)  (adjustable 37 ... 100%<) with built-in mechanical stop)
•    Running time Motor < 75 s (0 ... 2 Nm) Spring return < 25 s @ –20 ... 50°C / max. 60s @ –30°C
•    Sound power level Moto Max. 50 dB (A) Spring return Approx. 62 dB (A)
•    Service life Min. 60’000 operations
•    Position indication Mechanical
•    Safety Protection class II Totally insulated
•    Degree of protection IP42 in any mounting position
•    EMC CE according to 89/336/EEC Low voltage directive CE according to 73/23/EEC
•    Mode of operation Type 1.AA (to EN 60730-1)
•    Overvoltage category III
•    Control pollution degree 3
•    Ambient temperature range –30 ... +50°C
•    Non-operating temperature –40 ... +80°C
•    Ambient humidity range 95% r.H., non-condensating (EN 60730-1)
•    Maintenance Maintenance-free
•    Dimensions / Weight Dimensions See «Dimensions» on page 2
•    MWeight Approx. 600 g
