SKU
22UT-12

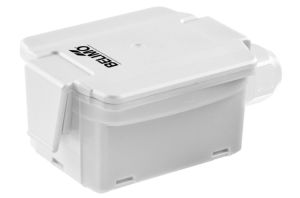

22UT-12 - Belimo Outside Temperature Sensor, DC 0...5 V, DC 0...10 V

£85.68 £71.40
On request
Next Supplier Stock Update: 18/04/2026
Free delivery over £30
Manuals & Datasheets

MANUAL

 MOUNTING

INSTRUCTIONS

 BROCHURE
Manual DATASHEET BROCHURE

IP ratingIP65
Output Signal0..10Vdc
ManufacturerBelimo
Power Supply24Vac/Vdc
Sensor TypeTemperature
Sensor characteristicsOutdoor

Explore all the components for your ventilation system at IACS. All Belimo Temperature Sensors in stock are ready for free delivery or 1-2 working days delivery.

The Belimo 22UT-12 is a Sensor used in HVAC applications and it is a device that provides an precise measurement of temperature.

The Sensor 22UT-12 is used to measure values for outdoor places.

The ideal Belimo Sensors for your system are most affordable at IACS.

If you have questions concerning size or installation, refer to the Belimo custom datasheet above or email IACS for individual ised support.

Electrical data Power Supply DC 15...24 V, ±10%, 0.5 W
  Power Supply AC 24 V, ±10%, 0.8 VA
  Electrical connection Removable spring loaded terminal block max. 2.5 mm²
  Cable entry cable gland PG11 Ø6...10 mm, with strain relief Ø6...8 mm
Functional data  Multirange YES
  Output signal active note Output DC 0...5/10 V with Jumper adjustable Voltage output: min. 5 kΩ load
  Media Air
Measuring data Measured values Temperature
  Measuring range temperature range selectable

Settings range[°C] range [°F] Factory setting
S0 -50...50 °C -30...130 °F
S1 -10...120 °C 40...140 °F
S2 0...50 °C 40...140 °F
S3 0...250 °C 30...480 °F
S4 -15...35 °C 0...100 °F
S5 0...100 °C 40...240 °F
S6 -20...80 °C 40...90 °F
S7 0...160 °C 0...150 °F  X
  Accuracy temperature ±1% of measuring range @ 21 °C
Materials Cable gland PA6, white
  Mounting plate Lexan, silvergray RAL7001
  Housing Cover: Lexan, white
    Bottom: Lexan, white
    Seal: 0467 NBR70, black
Scope of delivery Mounting plate
  Dowel
  Screws
