SM24A-TP

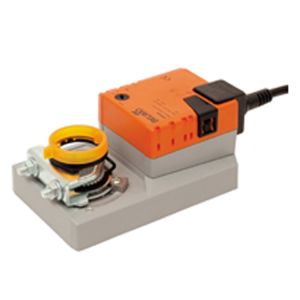

SM24A-TP - Belimo Damper actuator 20 Nm, 150 s, 95° AC / DC 24 V, Open/Close, 3-point
£162.96
£135.80
On request
Next Supplier Stock Update: 18/04/2026
Manuals & Datasheets
| DATA-SHEET |
 |
| Product type | Actuator |
| IP rating | IP54 |
| Input Signal | On/Off |
| Manufacturer | Belimo |
| Power Supply | 24Vac/Vdc |
| Torque | 20 Nm |
| Running time | 140 to 150 sec |
| Actuator type | Rotary |
| Control Type | Open/Close |
Find all the components for your ventilation system at IACS. All Belimo Actuators on hand are eligible for Free Delivery and 1-2 Delivery.
The Belimo SM24A-TP is a kind of Actuator used to manage dampers in HVAC applications and systems.
To control the damper, this kind of Actuator turns it by Rotary motion.
The Torque used by the SM24A-TP is 20 Nm.
This Belimo Actuator requests a power supply of 24Vac/Vdc.
Find the appropriate Belimo Actuator for your system at the greatest price at iacs.
If you have questions about size or installation, consult the Belimo custom datasheet above or send an email to iacs to get personalised guidance.
Features
- Simple direct mounting Simple direct mounting on the damper spindle with a universal spindle clamp, supplied with an anti-rotation strap to prevent the actuator from rotating.
- Manual override Manual override with push-button possible (the gear is disengaged for as long as the button is pressed or remains locked).
- Adjustable angle of rotation Adjustable angle of rotation with mechanical end stops.
- High functional reliability The actuator is overload-proof, requires no limit switches and automatically stops when the end stop is reached.
• Electrical data Nominal voltage AC 24 V, 50/60 Hz / DC 24 V
• Nominal voltage range AC 19.2 ... 28.8 V / DC 21.6 ... 28.8 V
• Power consumption In operation 2 W @ nominal torque At rest 0.4 W For wire sizing 4 VA
• Connection Terminals 4 mm2 (Cable ∅ 4 ... 10 mm, 3-core)
• Functional data Torque (nominal torque) Min. 20 Nm @ nominal voltage
• Direction of rotation Reversible with switch 0 resp. 1
• Manual override Gearing latch disengaged with pushbutton, can be locked
• Angle of rotation Max. 95° , can be limited at both ends withadjustable mechanical end stops
• Running time 150 s / 90°<)
• Sound power level Max. 45 dB (A)
• Position indication Mechanical, pluggable
• Safety Protection class III Safety extra-low voltage / UL Class 2 Supply
• Degree of protection IP54 in any mounting position NEMA 2, UL Enclosure Type 2
• EMC CE according to 2004/108/EC
• Certification cULus according to UL 60730-A and UL 60730-2-4 and CAN/CSA E60730-:02 Certified to IEC/EN 60730- and IEC/EN 60730-2-4
• Mode of operation Type 1
• Rated impulse voltage 0.8 kV
• Control pollution degree 3
• Ambient temperature –30 ... +50°C
• Non-operating temperature –40 ... +80°C
• Ambient humidity 95% r.H.
• Maintenance Maintenance-free
• Dimensions / Weight Dimensions See «Dimensions» on page 2
• Weight Approx. 1 kg
