The Belimo RV24A-MFis a type of Actuator used to open valves in HVAC systems and applications.

The Torque used by the RV24A-MF is 4500 N.

This Belimo Actuator requests a power supply of 24Vac/Vdc.

This Belimo component can be used with Globe Valves.

Find at IACS the ideal Belimo Actuator compatible with your system at the best price.

If you are unsure about size or installation, refer to the Belimo custom datasheet above or message iacs to receive special instructions and a custom quote.

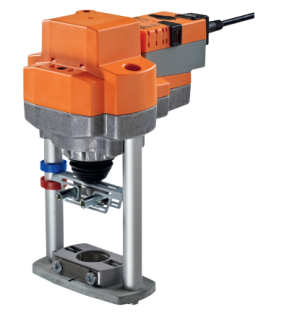

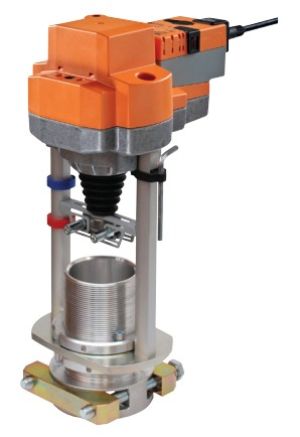

RV24A-MF Globe Valve Actuator, AC/DC 24 V

• Globe valve actuator
• 4500 N, 40 mm,
• AC/DC 24 V, modulating, multifunctional
• Operating range DC 2...10 V, adjustable
• Position feedback DC 2...10 V, adjustable
• Actuating time motor 120 s / 40 mm
• IP 54, Manual override temporary, permanent
• Connection PVC cable 1m

Mode of operation: The actuator is connected with a standard modulating signal of DC 0 ... 10V and travels to the position defined by the positioning signal. The measuring voltage U serves for the electrical display of the actuator position 0 ... 100% and as slave control signal for other actuators.

Parameterisable actuators: The factory settings cover the most common applications. Input and output signals and other parameters can be altered with the PC-Tool MFT-P or with the Service tool ZTH EU.

Direct mounting: Simple direct mounting on the globe valve by means of form-fit hollow clamping jaws. The actuator can be rotated by 360° on the valve neck.

Manual override: Manual override with push-button possible (the gear is disengaged for as long as the button is pressed or remains locked). The stroke can be adjusted by using a hexagon socket screw key (5 mm), which is inserted into the top of the actuator. The stroke spindle extends when the key is rotated clockwise.

High functional reliability: The actuator is overload protected, requires no limit switches and automatically stops when the end stop is reached.

Combination valve/actuator: Refer to the valve documentation for suitable valves, their permitted medium temperatures and closing pressures.

Position indication: The stroke is indicated mechanically on the bracket with tabs. The stroke range adjusts itself automatically during operation.

Home position: Factory setting: Actuator spindle is retracted. When valve-actuator combinations are shipped, the direction of motion is set in accordance with the closing point of the valve. The first time the supply voltage is switched on, i.e. at the time of commissioning, the actuator carries out an adaption, which is when the operating range and position feedback adjust themselves to the mechanical setting range. The actuator then moves into the position defined by the positioning signal.

Direction of stroke switch: When actuated, the direction of stroke switch changes the running direction in normal operation.

Adaption and synchronisation: An adaption can be triggered manually by pressing the „Adaption“ button or with the PC-Tool. Both mechanical end stops are detected during the adaption (entire setting range). Automatic synchronisation after pressing the gearbox disengagement button is configured. The synchronisation is in the home position (0%). The actuator then moves into the position defined by the positioning signal. A range of settings can be adapted using the PC-Tool (see MFT-P documentation)

Electrical data:

• Nominal voltage AC/DC 24 V
• Nominal voltage frequency 50/60 Hz
• Nominal voltage range AC 19.2...28.8 V / DC 21.6...28.8 V
• Power consumption in operation 6 W
• Power consumption in rest position 1.5 W
• Power consumption for wire sizing 11 VA
• Connection supply / control Cable 1 m, 4 x 0.75 mm²
• Parallel operation Yes (note the performance data)

Functional data:

• Actuating force 4500 N
• Positioning signal Y DC 0...10 V
• Positioning signal Y note Input impedance 100 kΩ
• Control signal Y variable Open-close, 3-point (AC only) and Modulating (DC 0...32 V
• Operating range Y DC 2...10 V
• Operating range Y variable Start point DC 0.5...30 V and End point DC 2.5...32 V
• Position feedback U DC 2...10 V
• Position feedback U note Max. 0.5 mA
• Position feedback U variable Start point DC 0.5...8 V and End point DC 2.5...10 V
• Position accuracy 5% absolute
• Manual override Gear disengagement with push-button, can be locked
• Nominal stroke 40 mm
• Actuating time 120 s / 40 mm
• Actuating time variable 72...120 s / 40 mm
• Adaption setting range manual (automatic on first power-up)
• Adaption setting range variable No action, Adaption when switched on, Adaption after pushing the gear disengagement button
• Override control MAX (maximum position) = 100%, MIN (minimum position) = 0% and ZS (intermediate position, AC only) = 50%
• Override control variable MAX = (MIN + 33%)...100%, MIN = 0%...(MAX – 33%) and ZS = MIN...MAX
• Sound power level motor 56 dB(A)
• Position indication Mechanically, 5...40 mm stroke

Safety:

• Protection class IEC/EN III Safety extra-low voltage
• Degree of protection IEC/EN IP54
• EMC CE according to 2004/108/EC
• Certification IEC/EN IEC/EN 60730-1 and IEC/EN 60730-2-14
• Mode of operation Type 1
• Rated impulse voltage supply / control 0.8 kV
• Control pollution degree 3
• Ambient temperature 0...50°C
• Non-operating temperature -40...80°C
• Ambient humidity 95% r.h., non-condensing
• Maintenance Maintenance-free

Weight: 4.4 kg
