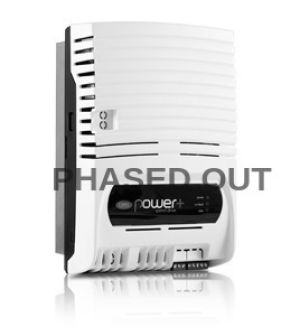

PSD1018400 - Phased Out - Replaced by the PS20018404100

On request

Next Supplier Stock Update: 18/04/2026

Chat with us to find out stock levels

Overview

Manuals & Datasheets

DATA-SHEET

Product type	Inverters
IP rating	IP20
Manufacturer	Carel
KW Rating	11 kW
Amps	23
Power Supply	400Vac, 3Ph, 50Hz

Description

PSD1018400 - Phased Out - Replaced by the PS20018404100

Power+ is a drive designed to control compressors with sensorless-brushless permanent magnet (PM) motors (BLDC/BLAC) or asynchronous induction motors. For the latter, vector or V/f control can be selected. The drives can also be used in some applications with fans and pumps, and consequently the device offers flexible use in the air-conditioning and refrigeration sectors. It is fitted for panel installation or with heat sink outside of the panel. Configuration and programming, as well as the Run/stop controls and speed reference, are managed by a CAREL pCO controller or any controller device via RS485 serial connection using the Modbus® protocol in master mode

PSD1018400 - POWER+ 18 A, 380-480V VAC 3PH, IP20/IP44

Technical characteristics

Power supply	380…480 Vac ± 10%, 3~
Rated input current (A)	30 A
Rated output current (A)	24 A
Operating temperature	-20T60 °C, 95% rH non-cond.
Storage temperature	-40T60 °C, 90% rH non-cond.
Index of protection	IP20 (front panel) IP44 for heat sink (installation with heat sink outside of panel)
