The Belimo PRCA-S2-T is an Actuator used in HVAC applications and air ventilation systems.

This type of Actuator applies a Rotary motion to regulate the damper.

The Torque force applied by the PRCA-S2-T is 160 Nm.

The power supply requested for this Rotary Actuator is 24Vac/Vdc.

Find the appropriate Belimo Actuator for your system at the greatest price at iacs.

If you have questions about size or installation, consult the Belimo custom datasheet above or send an email to iacs to get personalised guidance.

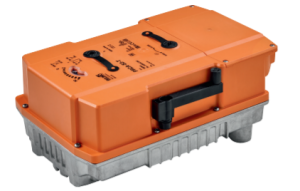

PRCA-S2-T Rotary Actuator, 160 Nm, AC / DC 24...230 V

• Nominal torque 160 Nm
• Nominal voltage AC 24...240 V / DC 24...125 V
• Control Open-close, 3-point
• with 2 integrated auxiliary switches

Fields of application

The actuator is particularly suitable for utilisation in outdoor applications and is protected against the following weather conditions:

• UV radiation
• dirt / dust
• rain / snow
• Humidity

Parameterisable actuators

The factory settings cover the most common applications. Single parameters can be modified with the ZTH EU or the Belimo Assistant App. The Belimo Assistant App simplifies commissioning and parameterisation via Near Field Communication (NFC). Moreover, it provides a variety of diagnostic options.

Simple direct mounting

Simple direct mounting on the butterfly valve. The mounting orientation in relation to the butterfly valve can be selected in 90° (angle) increments.

Manual override

The valve can be manually operated using a hand crank. Unlocking is carried out manually by removing the hand crank.

Internal heating

An internal heater prevents condensation buildup. Thanks to the integrated temperature and humidity sensor the built-in heater automatically switches on.

High functional reliability

The actuator is overload protected, requires no limit switches and automatically stops when the end stop is reached.

Combination valve/actuator

For valves with the following mechanical specifications in accordance with ISO 5211 F07:

• Square stem head SW = 17 mm for form-fit coupling of the rotary actuator.
• Hole circle d = 70 mm

Flexible signalization

The actuator has one auxiliary switch with a fixed setting (10°) and one adjustable auxiliary switch (0...90°).

Electrical data:

• Nominal voltage AC 24...240 V / DC 24...125 V
• Nominal voltage frequency 50/60 Hz
• Nominal voltage range AC 19.2...264 V / DC 21.6...137.5 V
• Power consumption in operation 20 W
• Power consumption in rest position 6 W
• Power consumption for wire sizing with 24 V 20 VA / with 230 V 52 VA
• Auxiliary switch 2 x SPDT, 1 x 10° / 1 x 0...90° (ex works 85°)
• Switching capacity auxiliary switch 1 mA...3 (0.5 inductive) A, AC 250 V
• Connection supply / control Terminals 2.5 mm²
• Connection auxiliary switch Terminals 2.5 mm²
• Parallel operation Yes (note the performance data)

Functional data:

• Torque motor Min. 160 Nm
• Manual override with hand crank, can be fixed in any position
• Running time motor 35 s / 90°
• Motor running time variable 30...120 s
• Sound power level motor max. 68 dB(A)
• Position indication Mechanically (integrated)

Safety:

• Protection class IEC/EN II reinforced insulation
• Protection class UL II reinforced insulation
• Protection class auxiliary switch IEC/EN II reinforced insulation
• Degree of protection IEC/EN IP66 + IP67
• Degree of protection NEMA/UL NEMA 4X, UL Enclosure Type 4X
• EMC CE according to 2014/30/EU
• Low voltage directive CE according to 2014/35/EU
• Certification IEC/EN IEC/EN 60730-1 and IEC/EN 60730-2-14
• Certification UL cULus according to UL 60730-1A, UL 60730-2- 14 and CAN/CSA E60730-1:02
• Mode of operation Type 1
• Rated impulse voltage supply 4 kV
• Rated impulse voltage auxiliary switch 2.5 kV
• Control pollution degree 3
• Ambient temperature -30...50°C
• Non-operating temperature -40...80°C
• Ambient humidity 95% r.h., non-condensing
• Maintenance Maintenance-free

Weight: Approx. 5.8 kg
