NVC24A-SZ-TPC Globe Valve Actuator, AC/DC 24 V - Belimo | ideal for globe valves

For any Belimo Actuators that are in stock at iacs, we offer Free Delivery and Next 1-2 Day Delivery.

The Belimo NVC24A-SZ-TPCis a kind of Actuator used to operate valves in HVAC applications and systems.

The force applied by the Torque of the NVC24A-SZ-TPC is 1000 N.

This Valve Actuator needs to be supported by a power supply of 24Vac/Vdc.

This Belimo component can be used with Globe Valves.

Find at IACS the ideal Belimo Actuator compatible with your system at the best price.

If you are unsure about size or installation, refer to the Belimo custom datasheet above or message iacs to receive special instructions and a custom quote.

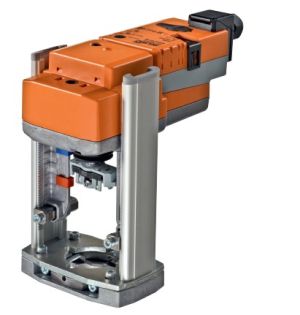

NVC24A-SZ-TPC Globe Valve Actuator, AC/DC 24 V

• 1000 N, 20 mm,
• AC/DC 24 V, modulating
• Operating range DC 0.5...10 V
• Position feedback DC 0.5...10 V
• Actuating time motor 35 s / 20 mm
• IP 54, Manual override temporary, permanent
• Connection Terminal with cable PVC 1 m

Principle of operation: The actuator is connected with a standard modulating signal of DC 0 ... 10V and travels to the position defined by the positioning signal. The measuring voltage U serves for the electrical display of the actuator position 0 ... 100% and as slave control signal for other actuators.

Simple direct mounting: Simple direct mounting on the globe valve by means of form-fit hollow clamping jaws. The actuator can be rotated by 360° on the valve neck.

Manual override: Manual override with push-button possible (the gear is disengaged for as long as the button is pressed or remains locked). The stroke can be adjusted by using a hexagon socket screw key (4 mm), which is inserted into the top of the actuator. The stroke spindle extends when the key is rotated clockwise.

High functional reliability: The actuator is overload protected, requires no limit switches and automatically stops when the end stop is reached.

Combination valve/actuator: Refer to the valve documentation for suitable valves, their permitted medium temperatures and closing pressures.

Position indication: The stroke is indicated mechanically on the bracket with tabs. The stroke range adjusts itself automatically during operation.

Home position: Factory setting: Actuator spindle is retracted. When valve-actuator combinations are shipped, the direction of motion is set in accordance with the closing point of the valve. The first time the supply voltage is switched on, i.e. at the time of commissioning, the actuator carries out an adaption, which is when the operating range and position feedback adjust themselves to the mechanical setting range. The actuator then moves into the position defined by the positioning signal.

Direction of rotation switch: When actuated, the direction of stroke switch changes the running direction in normal operation.

Adaption and synchronisation: An adaption can be triggered manually by pressing the „Adaption“ button. Both mechanical end stops are detected during the adaption (entire setting range). The actuator then moves into the position defined by the positioning signal.

Electrical data:

• Nominal voltage AC/DC 24 V
• Nominal voltage frequency 50/60 Hz
• Nominal voltage range AC 19.2...28.8 V / DC 21.6...28.8 V
• Power consumption in operation 3.5 W
• Power consumption in rest position 1.5 W
• Power consumption for wire sizing 5.5 VA
• Connection supply / control Terminals with cable 1 m, 4 x 0.75 mm² (Terminal 4 mm²)
• Parallel operation Yes (note the performance data)

Functional data:

• Actuating force motor 1000 N
• Positioning signal Y DC 0...10 V
• Positioning signal Y note Input impedance 100 kΩ
• Operating range Y DC 0.5...10 V
• Position feedback U DC 0.5...10 V
• Position feedback U note Max. 0.5 mA
• Position accuracy 5% absolute
• Manual override Gear disengagement with push-button, can be locked
• Nominal stroke 20 mm
• Actuating time 35 s / 20 mm
• Adaption setting range manual (automatic on first power-up)
• Sound power level motor 60 dB(A)
• Position indication Mechanically, 5...20 mm stroke

Safety:

• Protection class IEC/EN III Safety extra-low voltage
• Degree of protection IEC/EN IP54
• EMC CE according to 2004/108/EC
• Certification IEC/EN IEC/EN 60730-1 and IEC/EN 60730-2-14
• Mode of operation Type 1
• Rated impulse voltage supply / control 0.8 kV
• Control pollution degree 3
• Ambient temperature 0...50°C
• Non-operating temperature -40...80°C
• Ambient humidity 95% r.h., non-condensing
• Maintenance Maintenance-free

Weight: 1.4 kg
