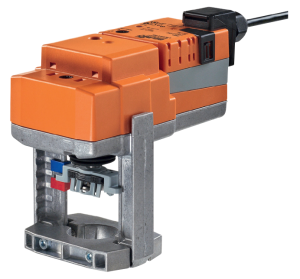

NV24A-MP-RE - Belimo Globe valve actuator retrofit 1000 N, 20 mm, AC/DC 24 V, modulating, MP-Bus | ideal for globe valves

We provide Free Delivery and Next 1-2 Day Delivery for all Belimo Actuators that are in stock at iacs.

The Belimo NV24A-MP-REis a type of Actuator used to open valves in HVAC systems and applications.

The Torque used by the NV24A-MP-RE is 1000 N.

This Belimo Actuator requests a power supply of 24Vac/Vdc.

You may utilise this Belimo component with Globe Valves.

Find the appropriate Belimo Actuator for your system at the greatest price at iacs.

If you have questions about size or installation, consult the Belimo custom datasheet above or send an email to iacs to get personalised guidance.

Globe valve actuator retrofit
1000 N, 20 mm,
AC/DC 24 V, modulating, MP-Bus
Operating range DC (0) 0.5...10 V, adjustable
Position feedback DC (0) 0.5...10 V, adjustable
Actuating time motor 150 s / 20 mm
IP 54, Manual override temporary, permanent
Universal valve adapter separately
Connection terminal without cable

Features:

• Principle of operation: The actuator is connected with a standard modulating signal of DC 0 ... 10V and travels to the position defined by the positioning signal. The measuring voltage U serves for the electrical display of the actuator position 0 ... 100% and as slave control signal for other actuators.
• Adjustable-parameter actuators: The factory settings cover the most common applications. Input and output signals and other parameters can be altered with the PC-Tool MFT-P or with the service tool ZTH-GEN.
• Installation on third-party valves: The retrofit actuators for installation on a wide range of valves from various manufacturers are comprised of an actuator, bracket, universal valve neck adapter and universal valve stem adapter. Adapt the valve neck and valve stem to begin with, then attach the retrofit bracket to the valve neck adapter. Now fit the retrofit actuator into the bracket and connect it to the valve. Whilst taking the position of the valve closing point into account, secure the actuator to the bracket and then conduct the commissioning process. The valve neck adapter/actuator can be rotated through 360° on the valve neck, provided it is permitted by the size of the installed valve.
• Installation on Belimo valves: Please use standard actuators from Belimo for installation on Belimo globe valves. The installation of retrofit actuators on Belimo globe valves is technically possible.
• Manual override: Manual override with push-button possible - temporary, permanently. The gear is disengaged and the actuator decoupled for as long as the button is pressed / latched. The stroke can be adjusted by using a hexagon socket screw key (4 mm), which is inserted into the top of the actuator. The stroke spindle extends when the key is rotated clockwise.
• High functional reliability: The actuator is overload protected, requires no limit switches and automatically stops when the end stop is reached.
• Position indication The stroke is indicated mechanically on the bracket with tabs. The stroke range adjusts itself automatically during operation.
• Home position: Setting ex-works: Actuator spindle is retracted.
• Direction of stroke switch: When actuated, the direction of stroke switch changes the running direction in normal operation.
• Adaption of stroke range: The first time the supply voltage is switched on, i.e. at the time of commissioning, the actuator carries out a stroke adaption, which is when the operating range and position feedback adjust themselves to the mechanical stroke.Manual triggering of the adaption can be carried out by pressing the "Adaption" button or with the PC-Tool.The actuator then moves into the position defined by the positioning signal.
