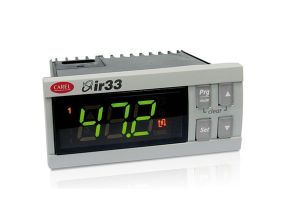

IR33E7LR20 - Carel IR33 Universal Controller for Panel installation, electronic Controller with Temperature Inputs 2 relays + 2 output 0 to 10 V version, 12 to 24 Vac (12 to 30 Vdc)

For your HVAC system, look into our entire selection of Carel IR33Temperature and Universal Controllers at iacs.

The IR33-DN33 Universale is a family of Controllers made for controlling air conditioning, refrigeration, and heating systems' primary physical values (temperature, pressure, and humidity).

The Carel IR33E7LR20 is a Controller with Temperature inputs.

This Carel Controller is a panel mounted Controller.

The IR33E7LR20 Controller has 2 Relays or Digital Outputs

This IR33Controller has 2 Analogue Inputs and 2 Digital Inputs.

The Power Supply is 12 to 24 VThe Buzzer is included.

For technical advice, refer to the Carel manualsheet and contact our iacs technical support team.

-

IR33E7LR20 - IR33 Universal 2 relays + 2 output 0 to 10 V version, 12 to 24 Vac (12 to 30 Vdc)

2 relay+2 output 0 to 10 V version, 12 to 24 Vac (12 to 30 Vdc)

Description: 2 relay +2 output 0 to 10 V version, 12 to 24 Vac (12 to 30 Vdc)
Total Number of Relays: 2
Total Number of 0..10V Outputs: 2
Power Input (AC): 12 to 24 Vac (12 to 30 Vdc)
Operating Conditions: 10 to 60 ºC
Humidity (Non-Condensing): <90% rh
Storage Conditions: 20T70 ºC, <90% rH non-condensing
Digital Output: 3 digit with decimal point & sign
Installation: Flush mount
Index of Protection: IP65
Options and Accessories: IROPZ48500, RS485 Serial Card, IROPZKEY00, Parameter Programming Key
