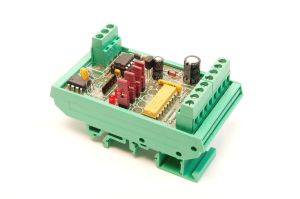

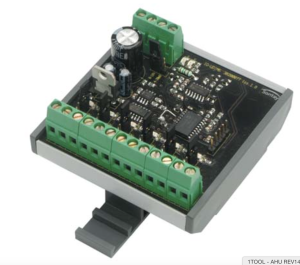

IO/DIM6-8 - Titan Digital Input Mutiplexer

The IO/DIM6/8 is design to accept Volt free digital inputs and convert the inputs to a multistage voltage (0-10V) or multistage milliamp (4-20mA) output. The configuration of 6 or 8 inputs is link selectable. The DIM6 input is binary providing 64 levels of output whilst the 8 input mode is a multiplexed signal of 2 x 4 inputs on a time base (see tables for output modes and values). IO/DIM6-8 - Digital Input Mutiplexer FEATURES * 24 Volt AC or DC supply. * 6 or 8 Volt free Digital Inputs. * 0-10V or 4-20mA output. * Voltage output trimmer. * Multiplexed output values. * mA output trimmer. * LED status Indication. * DIN Rail mounting.Converts 6 or 8 digital input signals into a multiplexed 0-10V or 4-20mA output. The DIM6 input is binary providing 64 levels of output whilst the 8 input mode is a multiplexed signal of 2 x 4 inputs on a time base. The IO/DIM6-8/0I opto-isolate the inputs from the module supply and the 0-10V or 4-20mA signal output. The IO/DIM6-8 multiplexer modules are compatible with most BMS controllers.

SPECIFICATION

• Input 6 or 8 Volt free
• Output 0-10V DC (o/p impedance >100 Ω),  4-20mA (load 500 Ω)
• Output Format See Tables
• Power Supply 24V AC/DC (± 10%)
• Power Consumption Max 30mA + output load
• LED indication When input contacts closed
• Operating Temperature -10 to + 40°C
• Terminals Max cable size 2.5mm
• Dimensions 82mm High, 57mm Wide, 43mm Deep
