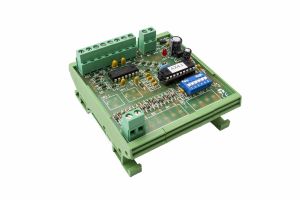

IO/AX4.1S - Titan Output Module

The IO/AX4.1S is an analogue output module that is designed to convert 1 x 0-10 Volt input signal to 2, 3 or 4 x 0-10 Volt outputs operating in sequence. The output slopes can be set to overlap each other by up to 2 Volts by the adjustment of VR2. There is also an output variable delay timer which is set on VR1 (0 to 5 mins.) FEATURES * Microprocessor Based. * 24 Volt AC/DC Supply. * 1 Input signal to control in sequence up to 4 outputs. * Output slopes can be overlapped by up to 2 Volts. * Output signals can be operated with a variable time delay. * DIN Rail mounting.The IO/AX4.1S is an analogue output module that is designed to convert 1 x 0-10 Volt input signal to 2, 3 or 4 x 0-10 Volt outputs operating in sequence. . The output slopes can be set to overlap each other by up to 2 Volts by the adjustment of VR2. There is also an output variable delay timer which is set on VR1 (0 to 5 mins. The IO/AX4.1s requires a 24AC or 24DC supply and is compatible with most BMS controllers.

SPECIFICATION
Input:                                     - 1 x 0-10 Volt
Output:                                  - 2, 3 or 4 x 0-10 Volt
Power Supply:                     - 24 Volts AC or DC (± 15%)
Power Consumption:        - 25mA(max)
Terminals:                            - Max. cable size 1.0mm
Operating Temperature:    - 0 to +50°C
Dimensions:                        - 85mm High
                                               80mm Wide
                                               45mm Deep
Mounting:                             - DIN Rail
Order Code:                         - IO/AX4.1S
