E2V24CS100 - Carel Electronic Expansion Valve E2V-24C 13-13 s.Steel High Pressure

£369.35 £307.79

On request

Next Supplier Stock Update: 18/04/2026

Chat with us to find out stock levels

Overview

Manuals & Datasheets

MANUAL	DATA-SHEET	EEV SELECTION GUIDE	BROCHURE	APPLICATION NOTES	CROSS REFERENCE TABLE

Product type	Expansion Valves & Drivers
Manufacturer	Carel
ExV Valve type	E2V standard
Pipe connection	13-13 mm ODF

Description

The E2V-C electronic valve is designed for installation in refrigerant circuits as the refrigerant expansion device for superheat control at the compressor inlet (using the superheat calculated by a pressure and temperature probe located at the evaporator outlet as the control signal).

The valve can also be used as the pressure controller in transcritical circuits with CO2 refrigerant (R744). Only CAREL instruments should be used for control of the E2V-C

Compatibility R22, R134a, R404A, R407C,R410A, R744, R507A, R417A

Maximum Operating Pressure (MWP) up to 140 barg (2030 PSIg) - for E2V**CSF** and E2V**CZ*** up to 90 bar (1305 PSIg)

Maximum Operating DP (MOPD) up to 120 bar (1740 PSI), for E2V24CS0**, E2V24CS1** and E2V24CWAC* 85 bar (1233 PSI), for E2V**CSF** and E2V**CZ*** 60 bar (870 PSI)

P.E.D Gr. 2, art. 4, par. 3 #

Refrigerant temperature -40T70 °C (-40T158 °F)

Room temperature -30T70 °C (-22T158 °F

An online selection tool for the ExV Valves is available HERE.

Before you can use this tool, will need to create a UserID and passwords on KSA.

Phase current	450 mA
Drive frequency	50 Hz (up to 150 Hz for emergency closing)
Phase resistance (25°C / 77°F)	36 Ohm ± 10%

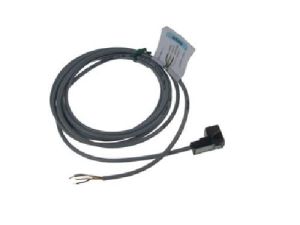

Index of protection	IP67 with E2VCAB***
Step angle	15 °
Linear advance/step	0.03 mm (0.0012 inches)
Connections	4 wires
Complete closing steps	500
Control steps	480
