BL0T2C00H0SP - Carel 5 to 8 kg/h cylinder for humiSteam Immersed electrode humidifier, three-phase, type C (400 Vac standard)

Discover the full selection of Carel cylinders parts for your Humidification system at iacs.

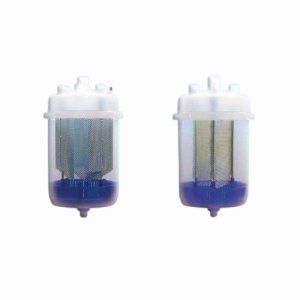

The Carel BL0T2C00H0 is a cylinder used for the Carel Humidifier Systems, Humisteam x-plus.

The BL0T2C00H0has a capacity of 5-8 kg/h and 200-204 Diameter

This Single Use Disposable 3-phase steam cylinder is suitable for the Carel KUE02 Humidification kits, and 3 phase Humisteam UE005Y/X* and UE008Y/X* Humidifiers.

The Body is made of PPh Plastic, Class HB according to UL 94.

The Steam outlet is 30 mm

The manifold connection is 22 mm

The water volume is max 5.5 litres

The cylinder uses Galvanised steel electrodes.

The Electronic Connection is threaded M6. 10 mm nuts and isolating caps are supplied.

This part includes AFS sensor contacts.

The Max steam production is 8 kg/h

The maximum steam pressure is 0,0002 Mpa

Consult the Carel manualsheet and get in touch with our iacs technical support team for technical guidance.

Replacement BL0T2C00H0 Steam Cylinder for your Carel humidifier. Operates on 460 volt 3 phase unit with low conductivity water.
