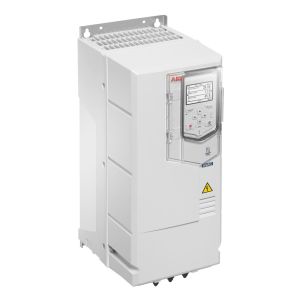

ACH550-01-031A-4-B055 - Phased out: This has been replaced by ACH580-01-033A-4+B056

On request

Next Supplier Stock Update: 18/04/2026

Manuals & Datasheets

MANUAL	BROCHURE

Product type	Inverter
IP rating	IP55
Manufacturer	ABB
KW Rating	15 Kw
Amps	31
Power Supply	400Vac, 3Ph, 50Hz

Description

ACH550-01-031A-4+B055 - Phased out: This has been replaced by ACH580-01-033A-4+B056

15kW Rated Inverter FLC 31 Amps Continuous Supply Power Supply 415v, 3ph, 50 Hz Dimensions 611mmh, 257mmw, 253mmd ABB Frame size R3 (IP54) Weight 8.2kg With EMC filter built in as standard Programmer display included Inputs and Outputs: 2 Analogue I/Ps: (0/2-10v or 0/4-20mA or a Potenziometer) 1 Analogue O/P:(0/4-20mA) 6 Digital I/Ps 3 Digital O/Ps: (3 relay)

Quick Overview:

ABB component drives meet the requirements of OEMs, end-users and panel builders for small power drive applications. The component drive gives you efficient control and is available in a number of options and variants to give you the widest choice available today.

Typical Application:

ABB standard drives can be used in a wide range of industries. Typical applications include pump, fan and constant torque use, such as conveyors. ABB standard drives are ideal in those situations where there is a need for simplicity to install, commission and use.

Technical Information:

Quick and easy installation - less than 5 minutes No programming - easy and descriptive interface Compact size and narrow shape Ideal drive for DIN-rail mounting Low EMC emissions Silent motor Forward and reverse switch 2 mounting orientations IP20 as standard No control panel required User interface via 3 DIP switches and a further 8 on/off function switches located on panel front Potentiometer option Integral EMC filter for 1st environment (EN61800-3), unrestricted distribution Optional first environmental filter for extended cable runs Optimised switching frequency for noise (up to 16kHz)

Type	N/A
Dimensions	611H, 257W, 253D (mm)
KW	15
Part Number	ACH550-01-012A-4-B055
IP	54
Frame Size	R3
PH	3
AMPS	31
Voltage	400
